Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TianGe
  • Model Number: TG65
  • Open Style: Sliding
  • Position: Interior
  • Surface Finishing: Finished
  • Type: Sliding Doors
  • Sliding Door Type: Partition Doors
  • Door Material: Aluminum Alloy
  • thickness: 65,80,85,100,ultrahigh
  • width: 800-1230mm
  • height: 2000-16000mm
  • acoustic coefficient: 30-60db
  • weight: 18-60kg/m3
  • faceplate: veneer,plaster,MDF,melamin,fabric
  • slide rail: aluminum
  • track: steel
  • Inside material: 96kg/M3 fiberglass
  • bearing weight: 250-1250kg/m

Packaging & Delivery

Packaging Details: Standard cardbox or customized by customer's request
Delivery Detail: 25 days
Tiange Partition
1> sound proof board is modernized decoration style. It can separate the space speedly and
     conveniently. And it has sound insulation and heat insulation and fireproof function;
2> The Partition Board is made from high density s/s frame, special made rubber, excellent sound
      insulation cotton and finish board etc. the finish board is flat and hard;
 3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the
     board can be stored in may different ways;

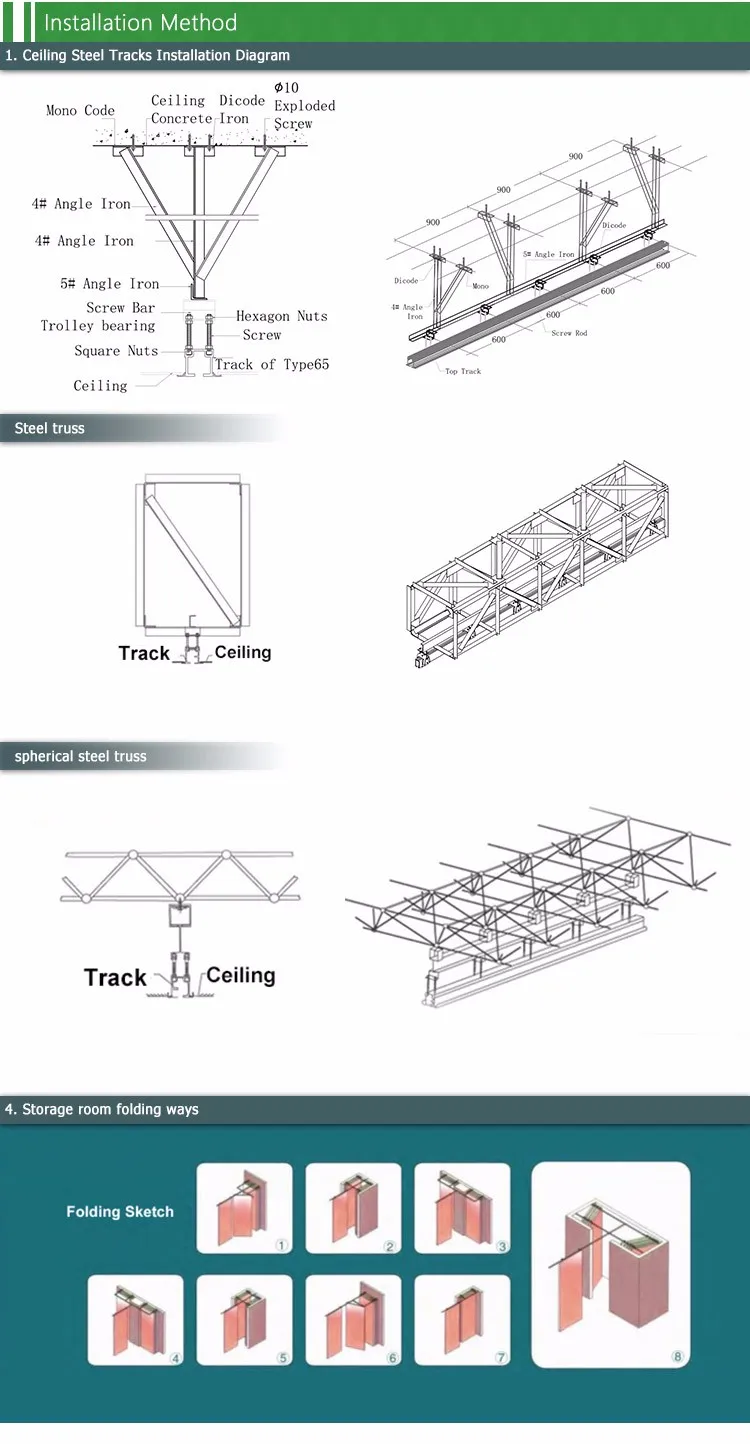

4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the
     same plane with the ceiling decoration. It won’t affect the whole decoration style;
 5> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering;
6> The operation ways is much easier, it’s better than the old ways which was use spring before;
7> We can add single or double doors on the board for convenience;
8> We have many different finish to meet customer different requirement and get different decoration effect.




Main Products
About Us

                                                                                                                                                                                         Contact us soon>>

Sound proof office room operable partition wall : Tiange operable partition wall board thickness is 65mm, it can be double or single piece, and can be designed U shape or Lshape door. every panel can board 225kgs weight. The top and bottom flex range is 22.5mm.



Sound proof office room operable partition wall parameters:

A> Galvanized sheet base board: sound insulation coefficient RW=36dB, the density is 30kg/m2;

B>MDF or ply wood base board: sound insulation coefficient RW=32dB, the density is 24kg/m2;

C>Magnesium board base board: sound insulation coefficient RW=26dB, the density is 25kg/m2;



Sound proof office room operable partition wall usage: it is widely used at 2m~3.5m height.







Characteristics

1> Operable partition wall  is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function.

2> The operable partition wall is made from high density s/s frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.

3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways.



4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style.

5> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.

6> The operation ways is much easier, it’s better than the old ways which was use spring before.



7> We can add single or double doors on the board for convenience.

8> We have many different finish to meet customer different requirement and get different decoration effect....
